HD720P Portable cars DVR with 2.5 inch TFT Colorful Screen
Mode: Video Recorder / Camera
Image sensor: 5.0Mage pixel CMOS
WXGA : 1280 x 720 Pixels , 30fps(true)
WVGA: 840 x 480 Pixels , 30fps
VGA: 640 x 480 Pixels , 30fps
Support SD/MMC Cards: Up to 32GB
Support Real Time & Date display on video
Recording Automatically After the Power Up
High speed recording and quick light respond
Repeat storage by section
Power input: DC5V
Power Supplied by built-in rechargeablce battery,Car Charger or AC100~240V(Optional)
1* Portable car DVR
1* Window Suction Mount
1* USB Cable
1* Car Charger
1* User Manual
A: Internal Battery
ON:Press the button ON.
OFF:Press the button OFF,The device will automatically save the current file and shut down.
Recharger:Connect to the USB interface to charger,during the
charging,the light is red,when the battey is fully recharged,the light
When it connects the car charger.the power will aotomaticaly be ON,
When pull out the car charger,the device will automatically save the
When you power on the device,it will automatically take video,and
the light flashes green,press the REC/SNAP,the light stop flashes.,then
save the current file
Press mode button,select the photo mode,press REC/SNAP to take photo
4) Browse and Delete
Turn on the DVR and press Mode Button twice to enter into Preview Mode, Press Up or Down to select the previewed file. If it is video file, it can play or stop by pressing REC Button. If you want to delete it, press Menu Button to enter into delete mode, and then, select Single, All or Select by REC Button and Up/Down and confirm to delete the file by press REC Button.
5) DVR Parameter
Power on the DVR,press MODE BUTTON to enter the menu,press Up or
DOWN to select it.then press REC/SNAP to comfirm. Press menu button to
1) Video resolution: HD1280*720 VGA640*480
3) Motion detection
4) Frame rate: 10,20,30
5) Rycling Recording:2/5/15minites
6) Date,time setting
Language:English/ Chinese /Russian/ Portuguese
7) Light Frequency:50HZ or 60HZ
6) USB Mode
Connect DVR with computer by usb cable, the file is in the SD Card.
7) Preview on the HD TV
Turn on the DVR and connecet the DHMI link of DVR With the HD TV,press mode button to enter preview mode.s
- Please insert the sd card,when you take video.
- When the storage medium is full, it will record from the beginning again
and erase over the previously recorded material automatically.
It will have 3 seconds pause time, and namely the contents in the 3 seconds will not recorded.
- Video resolution: 1280*720/640*480
- Video Format: H.264
- Press Down at first and select [2/10/15/]minutes
- Power: Internal li-ion battery or 12V/24V Car charger
- Memory Card:SD/MMC(1G-64G)

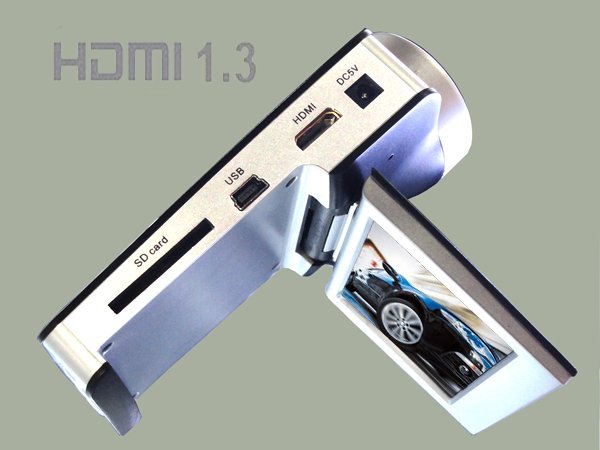

- Interface: HDMI/USB2.0
- Unit Type:
- Package Weight:
- 0.5kg (1.10lb.)
- Package Size:
- 20cm x 20cm x 10cm (7.87in x 7.87in x 3.94in)
